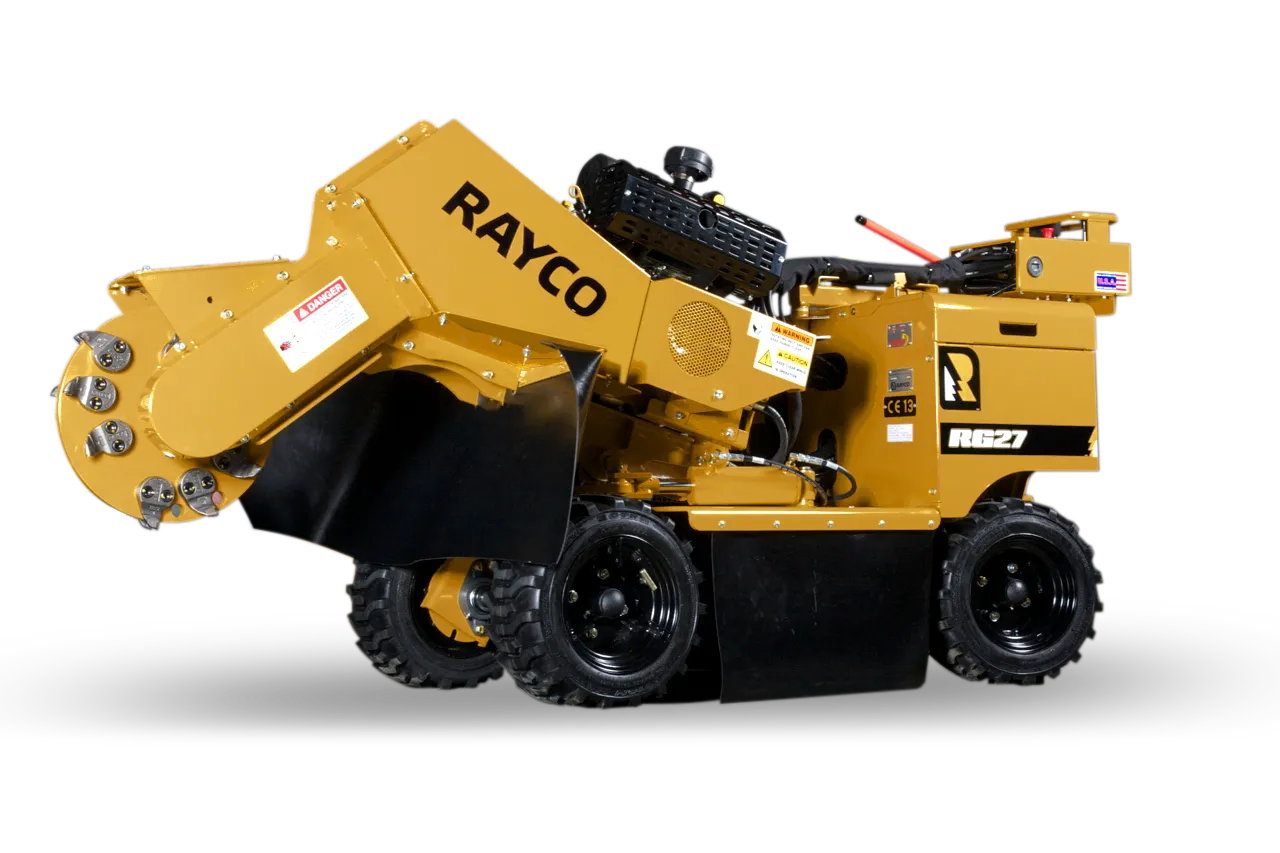

There’s a Super Jr model to fit every job and every budget. The Super Jr comes with gasoline engine power options of 27 HP (20.1 kW) and 37 HP (27.6 kW). To maximize visibility while cutting, all Super Jr’s have the drivetrain located on the far side of the cutter wheel. Rayco’s exclusive, swing-out control station gives operators the best view while cutting and swings in line with the machine for travel through gates. Wide, floatation tires with bar tread give the Super Jr a firm grip on the terrain, and dual wheels can be added for extra stability. Rayco’s exclusive slewing ring pivot design lowers the center of gravity and lets the Super Jr cut at maximum depth across the whole swing path.
WEIGHT | 1,770 lb, 803 kg |
LENGTH | 114”, 290 cm |
MAXIMUM HEIGHT | 52", 132 cm |
WIDTH | 35”, 89 cm |
WIDTH W/ DUAL WHEELS | 52.5”, 133 cm |
ENGINE | Vanguard |
HORSEPOWER | 27 hp, 20 kW |
FUEL TYPE | Gasoline, Petrol |
FUEL TANK | 5 gal, 18.9 L |
SUPER TOOTH | 18 total |
CUTTER WHEEL | 17.25” x 1”, 43.8 cm x 2.54 cm |
CUTTING DEPTH | 12”, 30.48 cm |
CUTTING HEIGHT | 24.5”, 62.23 cm |
CUTTING WIDTH | 51”, 129.54 cm |
