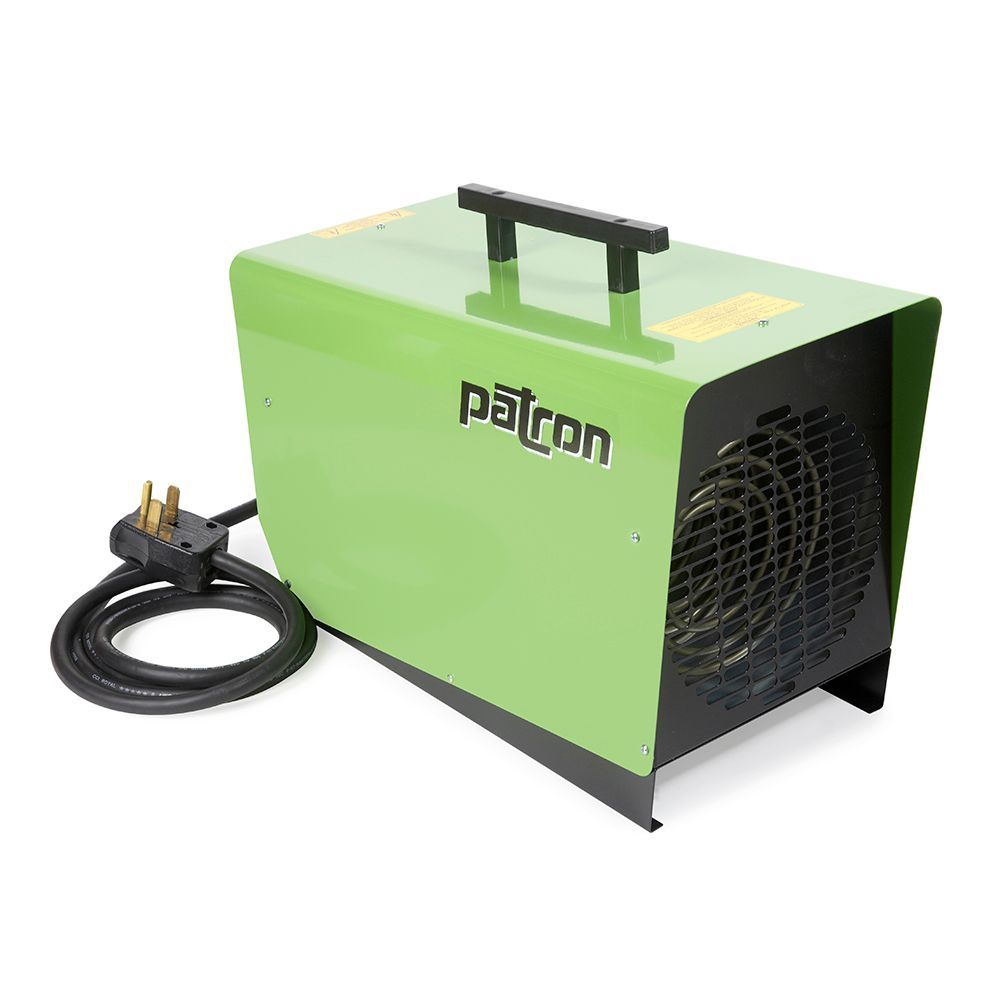

PATRON MODEL E9 ELECTRIC HEATER
The Patron E9 is a top seller which exceeds expectations on a regular basis. It can be used in the most demanding of environments and has proven its abilities in hundreds of applications. The E9 is a 240V unit and draws either 25 or 37.5 amps. This means it will run flawlessly off a stove receptacle. Make sure your receptacle is a NEMA 14-50P configuration, to ensure compatibility with our plug. The E9 produces a ton of heat, and disperses it in large areas with its 350 CFM fan.
For heating, drying, and ventilating
Integrated ambient thermostat from 32°F – 100°F
Overheat protection at 104°F
Durable steel casing with powder coating
Stainless jacketed heating coils
Fast, high temperature rise with uni-directional fan
User-friendly and proven reliability
UL / cUL Approved
Heat Output: 30,700 BTU/Hr
Wattage: 9,000W
Voltage: 240V
Amperage: 37.5 A
Airflow: 350 CFM
Actual Weight: 39.9 LBS
Power Cord: 10-ft (8 AWG)
Dimensions: 23″ x 14″ x 18″
Plug: NEMA 14-50P (Stove)
Noise Level: 55 dB(A) 1m
Max Cable Length: 50-ft (8AWG, 3-wire, SOOW) • 100-ft (6AWG, 3-wire, SOOW)
