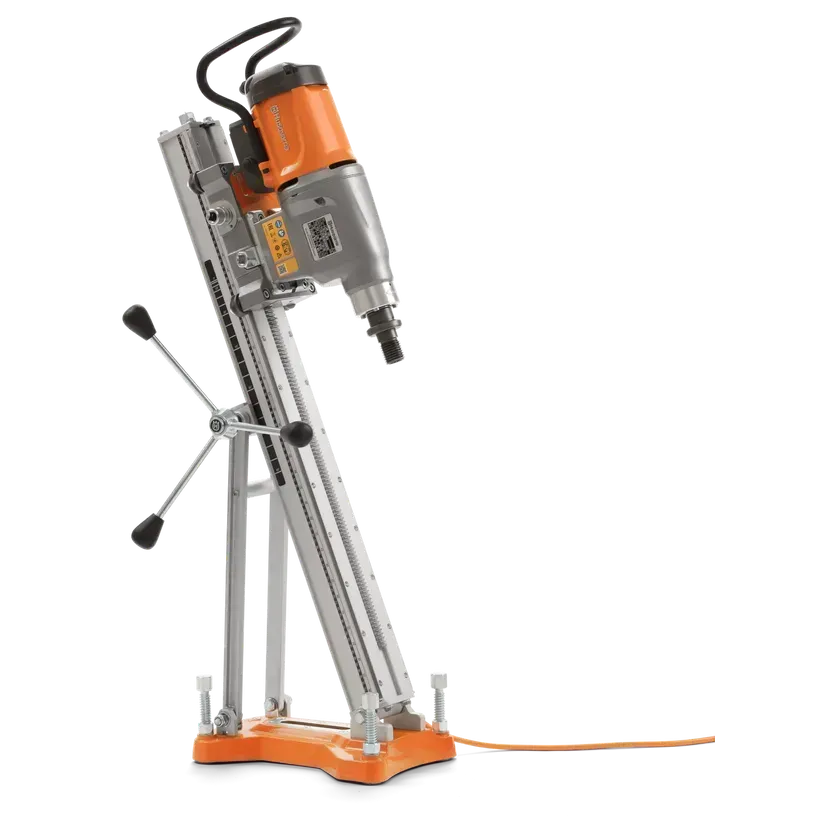

HUSQVARNA DM 400DM W/ BASE
DM 400 is a powerful and sturdy electric core drill for medium to heavy core drilling where reliability and high productivity is needed. Recommended diameter 55-350 mm. With an aluminum motor housing to withstand tough handling and a carrying handle for ergonomic usage and additional impact protection of the drill motor. Equipped with Embedded Connectivity, an enhanced version of Husqvarna Fleet Services™ for data analytics and insights into the health of the machine. Suitable for water evacuation, ventilation, angle drilling , stitch drilling and when you need to cut close to corners.
Sturdy and durable
Ergonomic
Optimized RPM’s
Embedded Connectivity
Quick connection
Quick-release washer
Functional design
Load indicator
Elgard™
Reliable gearbox
Easy start with reduced speed
Angle drilling
Barriers
Horizontal drilling
Stitch drilling
Water evacuation
Vertical drilling
Rated input power: 4.29 hp
Frequency: 50-60 Hz
Voltage: 100-120 V
Phases: 1 ph
Power source: Corded
Drill bit diameter with stand, max: 14 in
Recommended drill bit diameter, min: 2 in
Coolant: Wet
Number of gearbox speeds: 3
Spindle speed unloaded gear 1: 420 rpm
Spindle speed unloaded gear 2: 820 rpm
Spindle speed unloaded gear 3: 1,250 rpm
Water connector: G 1 / 4″
Water pressure, max: 43.5 psi
Spindle thread, outer: 1 1/4″ 7 UNC
Product size length: 21.5 in
Product size width: 5.5 in
Product size height: 7.3″
Weight: 31 lbs
Sound power level, guaranteed (LWA): 112 dB(A)
Sound power level, measured: 110 dB(A)
Sound pressure level at operators ear: 92 dB(A)
