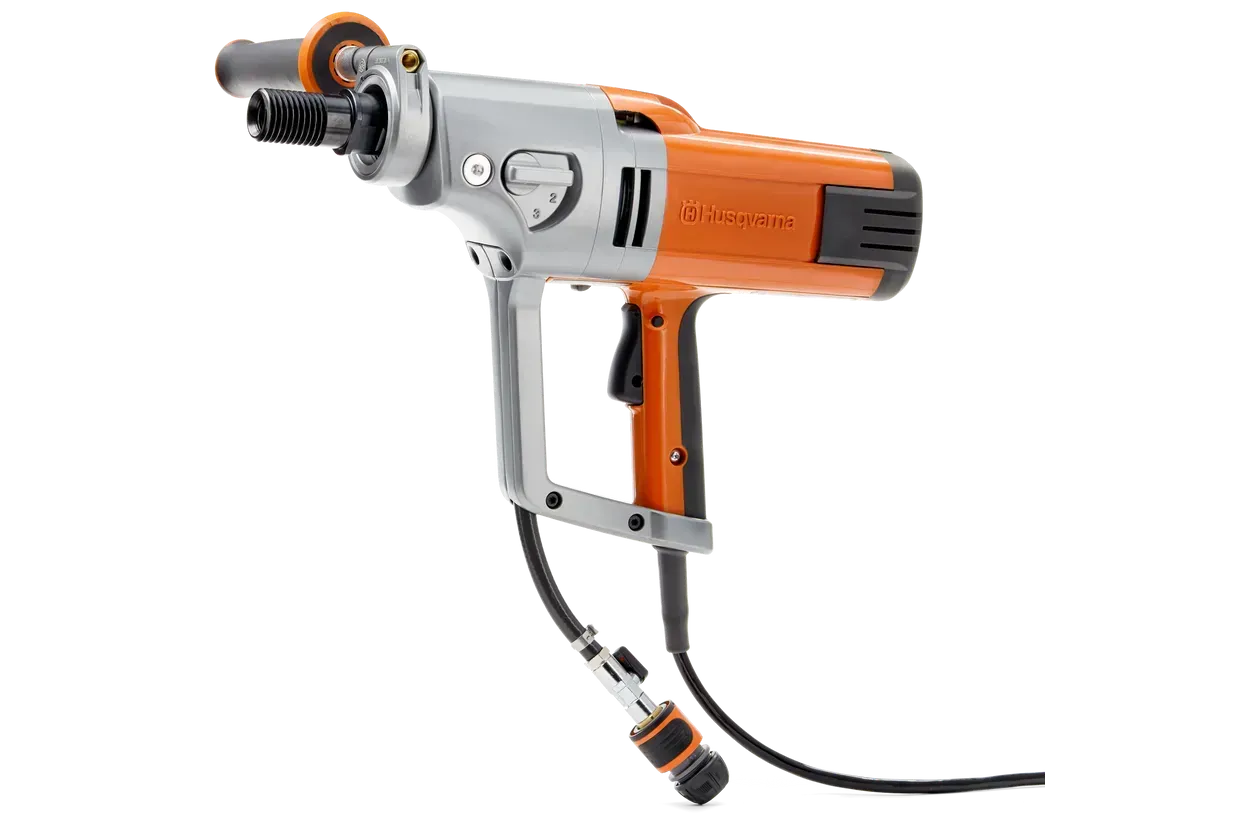

HUSQVARNA DM 230
Handheld electric core drill with attractive design and functional ergonomics. The motor is designed with an ergonomic pistol grip giving you greater control. Handheld core drilling up to 4 in. or drilling with stand up to 6 in. Suitable for light applications such as ventilation, plumbing pipes and electrical sockets. DM 230 is an excellent choice for professionals as well as less experienced users.
Overload protection
Reliable gearbox
Easy start with reduced speed
Durable and ergonomic design
Smooth start with normal fuses
Dry and wet drilling
Smart Start®
Softstart™
Barriers
Channels, pipes and cables
Rated input power: 2.5 hp
Phases: 1 ph
Power source: Corded
Phases: 1 ph
Power source: Corded
Drill bit diameter handheld, max: 3 in
Drill bit diameter with stand, max: 6 in
Recommended drill bit diameter, min: 0 in
Coolant: Wet
Number of gearbox speeds: 3
Spindle speed unloaded gear 1: 730 rpm
Spindle speed unloaded gear 2: 1,700 rpm
Spindle speed unloaded gear 3: 3,600 rpm
Water connector: G 1 / 4″
Water pressure, max: 116 psi
Mounting collar: 2.36 in
Spindle thread, inner: G 1/2″
Spindle thread, outer: 1 1/4″ 7 UNC
Product size length: 17.5 in
Product size width: 4.2 in
Product size height: 13.6″
Weight: 15.4 lbs
Sound power level, guaranteed (LWA): 108 dB(A)
Sound power level, measured: 107 dB(A)
Sound pressure level at operators ear: 93 dB(A)
