HAULOTTE SELF PROPELLED AERIAL LIFT

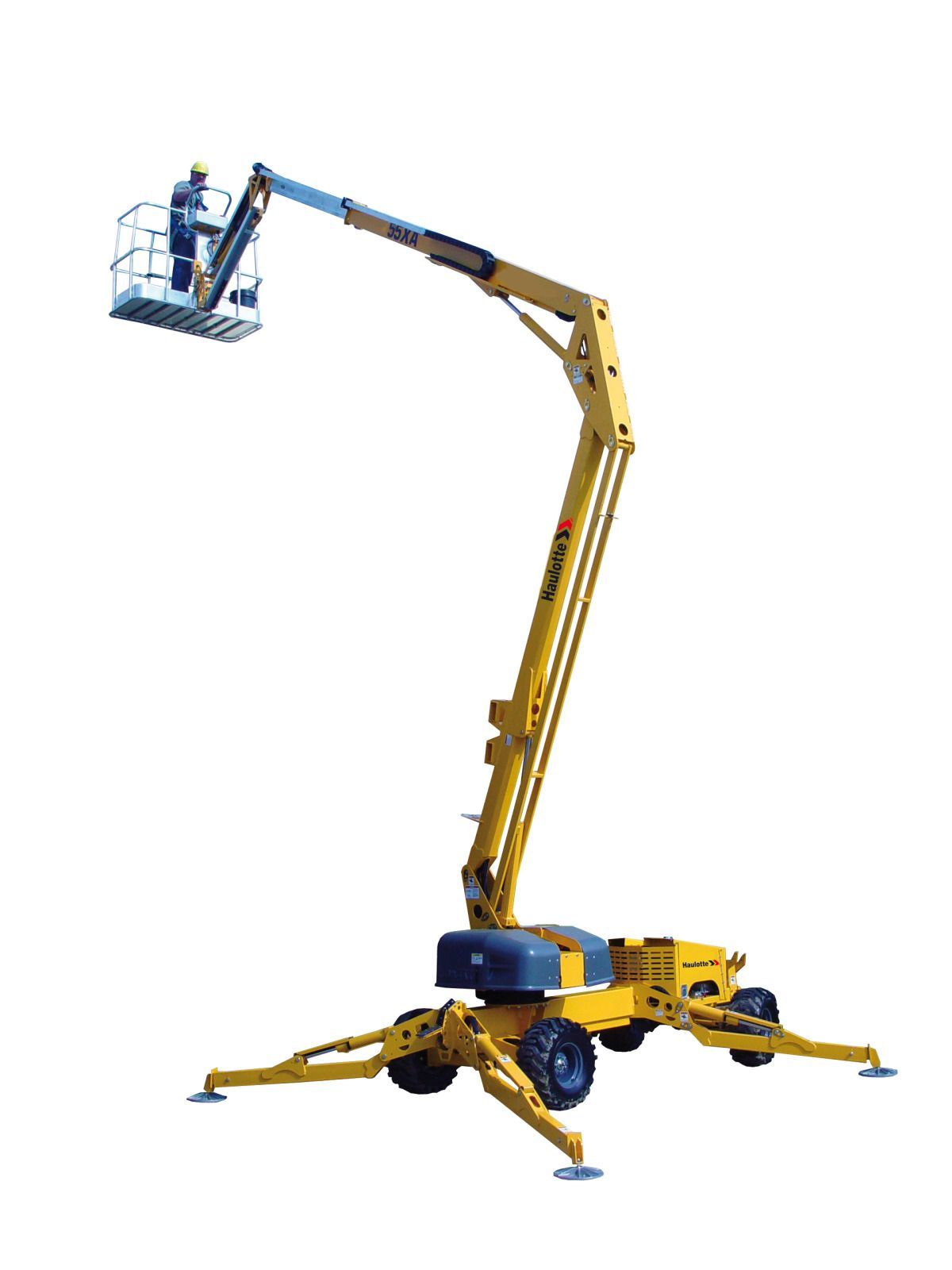

The Haulotte 55XA is a light-weight self-propelled lift with a platform height of 55 feet 3 inches. It is light enough to transport on a trailer without the requirement of a commercial drivers license to haul it. The 55XA has both electric batteries and a gas engine, and can be used indoors or out.
Access like never before
Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
High performance 4WD and light weight provide access to places larger and heavier machines cannot go
Easily transported on a trailer with no commercial driver’s license requirement
Dual power source (DC / Gas) allows for indoor/outdoor use
Optimum performance
4,000 Watt generator
Air / water lines to platform
110V GFI protected power to the platform
Working height: 61 ft 3 in
Platform height: 55 ft 3 in
Horizontal outreach (from centerline): 33 ft 5 in
Horizontal outreach (from edge of footpad): 27 ft 4 in
Up and over height: 23 ft 1 in
Lift capacity: 500 lb
Length – stowed: 21 ft 2 in
Width stowed: 5 ft 8 in
Height stowed: 6 ft 9 in
Wheelbase: 10 ft 1 in
Ground clearance: 10 in
Platform size: 5 ft x 2 ft 6 in
Outrigger footprint: 13 ft 11 in x 12 ft 9 in
Turntable rotation: 350° non-continuous
Jib – length: 4 ft 3 in
Jib – Vertical Motion: 150° (+70 / -80)
Drive speed: 4.75 mph (max)
Gradeability: 45 %
Turning radius – inside (2WS): 11 ft 4 in
Turning radius – inside (4WS): 6 ft 8 in
Tire size: 26 x 12 Bar lug
Batteries: 4 x 6V 260 Amp-hr
Engine: 31 hp gas Kubota
Weight: 6,000 lb
