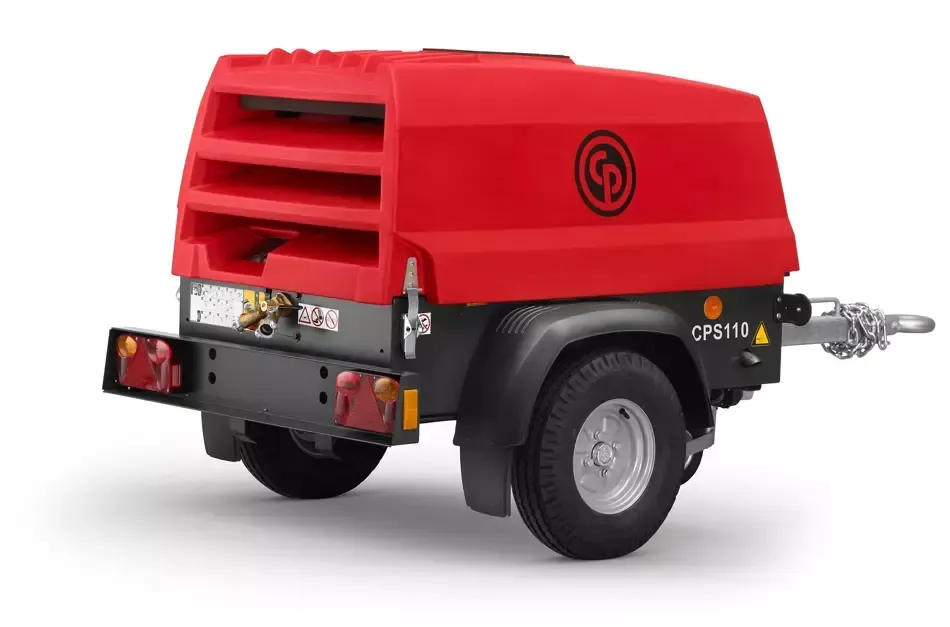

CHICAGO PNEUMATIC CPS 110
The Chicago Pneumatic CPS 110 is a single-stage, oil-injected, rotary screw type air compressor, powered by a liquid- cooled, three-cylinder turbocharged Kubota diesel engine. The unit hosts the new generation C67 Screw element in its air end combined with a Kubota made diesel engine model D902, complying with Tier 4 Final emission standard.
New Kohler KDI1908TCR Tier 4 Final Diesel Engine provides quiet and efficient power while not requiring a costly DPF System
Open-Canopy Design with Spin-On Oil and Separator Filters for ease of maintenance
Low-Speed Air-End spins at a maximum of 2600 rpm, reducing heat and virtually eliminating rotor and bearing failures
Curbside Mounted Control Panel and Adjacent Air Valves provide convenient operation and maximum operator safety
23.25 Gallon Steel Fuel Tank provides for more than a full shift of run time and resists cracking, splitting and deformation
Formed Steel Flex-Edge Fenders ensure ultimate strength, durability and resilience
Automatic load and unload feature prevents accidental loaded shutdown and blowback
Minimum effective receiver pressure: 29 Psi(g)
Maximum effective receiver pressure: 128 Psi(g)
Normal effective working pressure: 100 Psi(g)
Actual Free Air Delivery: 110 cfm
Fuel consumption at 100% load: 1.46 Gal/Hr (L/Hr)
Fuel consumption at 75% load: 1.20 Gal/Hr (L/Hr)
Fuel consumption at 50% load: 0.86 Gal/Hr (L/Hr)
Fuel consumption at 25% load: 0.62 Gal/Hr (L/Hr)
Max Sound Pressure Level (Lp @ ISO 2151): 71 dB(A)
Emissions stage: Tier 4 Final
Coolant: GENCool
Number of Cylinders: 3
Bore: 72 mm
Stroke: 73.6 mm
Swept Volume: 0.898 l
Capacity of Oil Sump- Initial Fill: 0.97 (3.67) US Gal (L)
Capacity of Oil Sump- Refill (max): 1.00 (3.79) US Gal (L)
Capacity of Cooling System: 1.19 (4.50) US Gal (L)
Capacity of Compressor Oil System: 1.98 (7.50) US Gal (L)
Net Capacity of Air Reciever: 2.64 (10.00) US Gal (L)
Air Volume at Inlet Grating (approx.): 1970 cfm
Capacity of Standard fuel tanks: 7.52 (28.50) US Gal (L)
Safety valve- min. opening pressure: 143.5 psi(g)
