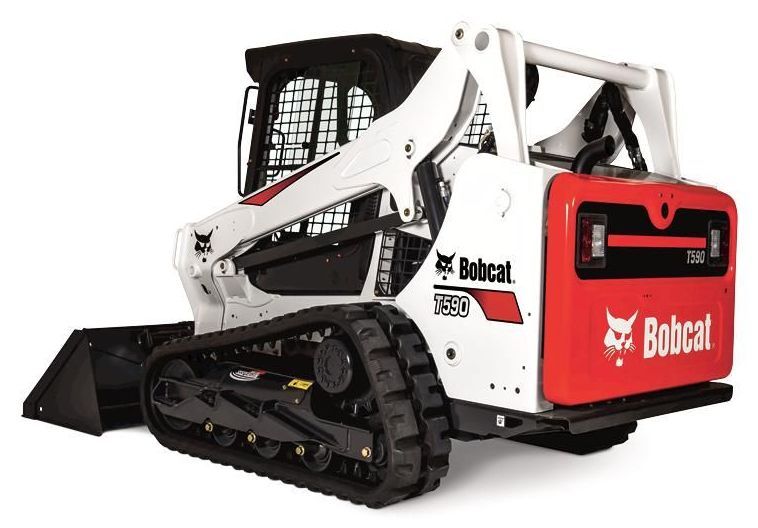

BOBCAT T590 COMPACT TRACK LOADER
If space is limited or you’re in rough conditions but you need high lift capacity, the Bobcat T590 Compact Track Loader is your perfect solution. It has the highest lifting height in the 500 series: ideal for loading and unloading bricks, blocks and other palletized materials.
Stage V engine advantages
Deluxe panel as standard
Superior Lift Arms
Overall Loader Performance Advantages
Durable Track System
Choice of Controls
Selectable Joystick Controls
Rubber Track Option
Premium Comfort
Improved Visibility
Operator-Friendly Controls
Seat Options and Adjustments
More Room
Pressurized Cab
Ground Pressure: 5.1 psi
Length of Track on Ground: 4.6 ft (1 m)
Width of Track: 12.6 in (30 cm)
Displacement: 158.7 cu in (0 m)
Emission Tier Level: Tier 4
Engine Model: V2607-DI-TE3B Interim Tier 4
Fuel: Diesel
Gross Power: 61 hp (45 kw)
Horsepower – Gross: 66 hp (49 kw)
Peak Torque: 155.6 lbs/ft
Power Measured @: 2700 rpm
Stroke: 4.4 in (10 cm)
Torque Measured @: 1425 rpm
Height – Top of Cab: 6.5 ft (2 m)
Length – with Bucket: 11.1 ft (3 m)
Length – without Bucket: 8.8 ft (2 m)
Overall height: 6.5 ft (2 m)
Overall width: 5.6 ft (2 m)
Reach at Max Lift and Dump: 1.7 ft (0 m)
Turning Radius from Center – machine rear: 6.7 in (15 cm)
Pump Flow: 17.1 gal/min (64 l/min)
Pump Type: Engine driven, gear type
Relief Valve Pressure: 3500 psi
Breakout Force: 4753 lbs (2,156 kg)
Operating Load: 2100 lbs (953 kg)
Operating Width: 67 in (170 cm)
Tipping Angle: 6000 °
Engine Oil Capacity: 2.6 gal (8 l)
Fuel Capacity: 36.5 gal (136 l)
