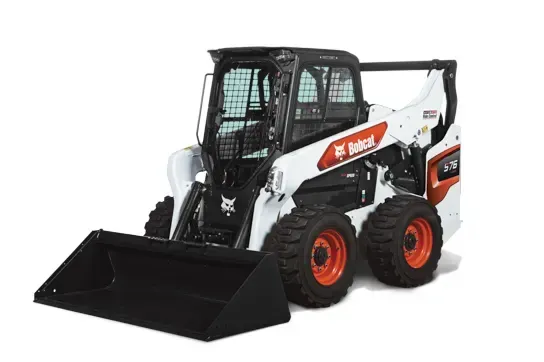

BOBCAT S76 SKID-STEER LOADER
The S76 skid-steer loader is designed to help you accomplish more with one machine. This 74-hp, vertical-lift-path skid-steer loader delivers powerful breakout forces, fast cycle times and upgraded lifting capabilities – including increased capacity and height. Machine enhancements include an inline engine and direct-drive system, cast-steel lift arms and improved cooling performance. It is highly maneuverable, offering effective turning and skidding that is ideal for challenging work in tight areas. All this, plus you’ll experience a new level of operator comfort thanks to a roomy cab, ergonomic controls, optional automatic heat and air conditioning and more. The S76 is optimized to deliver more usable horsepower and the overall performance you demand to take on bigger, more challenging work.
The vertical-lift-path Bobcat® S76 skid-steer loader delivers powerful breakout forces, fast cycle times and upgraded lifting capabilities – including increased capacity and height.
The 74-hp S76 is highly maneuverable, offering effective turning and skidding that is ideal for challenging work in tight areas.
Machine enhancements include an inline engine and direct-drive system, cast-steel lift arms and improved cooling performance.
Experience a new level of operator comfort thanks to a roomy cab, ergonomic controls, optional automatic heat and air conditioning and more.
Horsepower: 74hp
Rated Operating Capacity (ISO): 2,900lbs
Operating Weight: 8,615lbs
Auxiliary Std Flow: 23.3 gal/min
Auxiliary High Flow: 30.3 gal/min
Joystick Control: Optional
Length: 147.1in
Length without Attachment: 113.9 in
Length with Standard Bucket: 147.1 in
Width: 72 in
Width with Bucket: 74 in
Height: 81.8 in
Height to Bucket Hinge Pin: 128.3 in
Reach @ Maximum Height: 37.4 in
Turning Radius: 87.7 in
Wheelbase: 48.3 in
