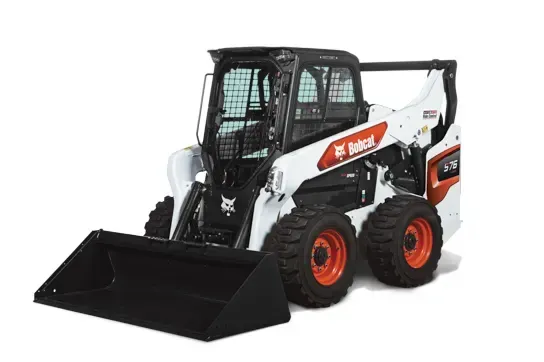

The S76 skid-steer loader is designed to help you accomplish more with one machine. This 74-hp, vertical-lift-path skid-steer loader delivers powerful breakout forces, fast cycle times and upgraded lifting capabilities – including increased capacity and height. Machine enhancements include an inline engine and direct-drive system, cast-steel lift arms and improved cooling performance. It is highly maneuverable, offering effective turning and skidding that is ideal for challenging work in tight areas. All this, plus you’ll experience a new level of operator comfort thanks to a roomy cab, ergonomic controls, optional automatic heat and air conditioning and more. The S76 is optimized to deliver more usable horsepower and the overall performance you demand to take on bigger, more challenging work.
Features:
Horsepower | 74hp |
Rated Operating Capacity (ISO) | 2,900lbs |
Operating Weight | 8,615lbs |
Auxiliary Std Flow | 23.3 gal/min |
Auxiliary High Flow | 30.3 gal/min |
Joystick Control | Optional |
Length | 147.1in |
Length without Attachment | 113.9 in |
Length with Standard Bucket | 147.1 in |
Width | 72 in |
Width with Bucket | 74 in |
Height | 81.8 in |
Height to Bucket Hinge Pin | 128.3 in |
Reach @ Maximum Height | 37.4 in |
Turning Radius | 87.7 in |
Wheelbase | 48.3 in |
