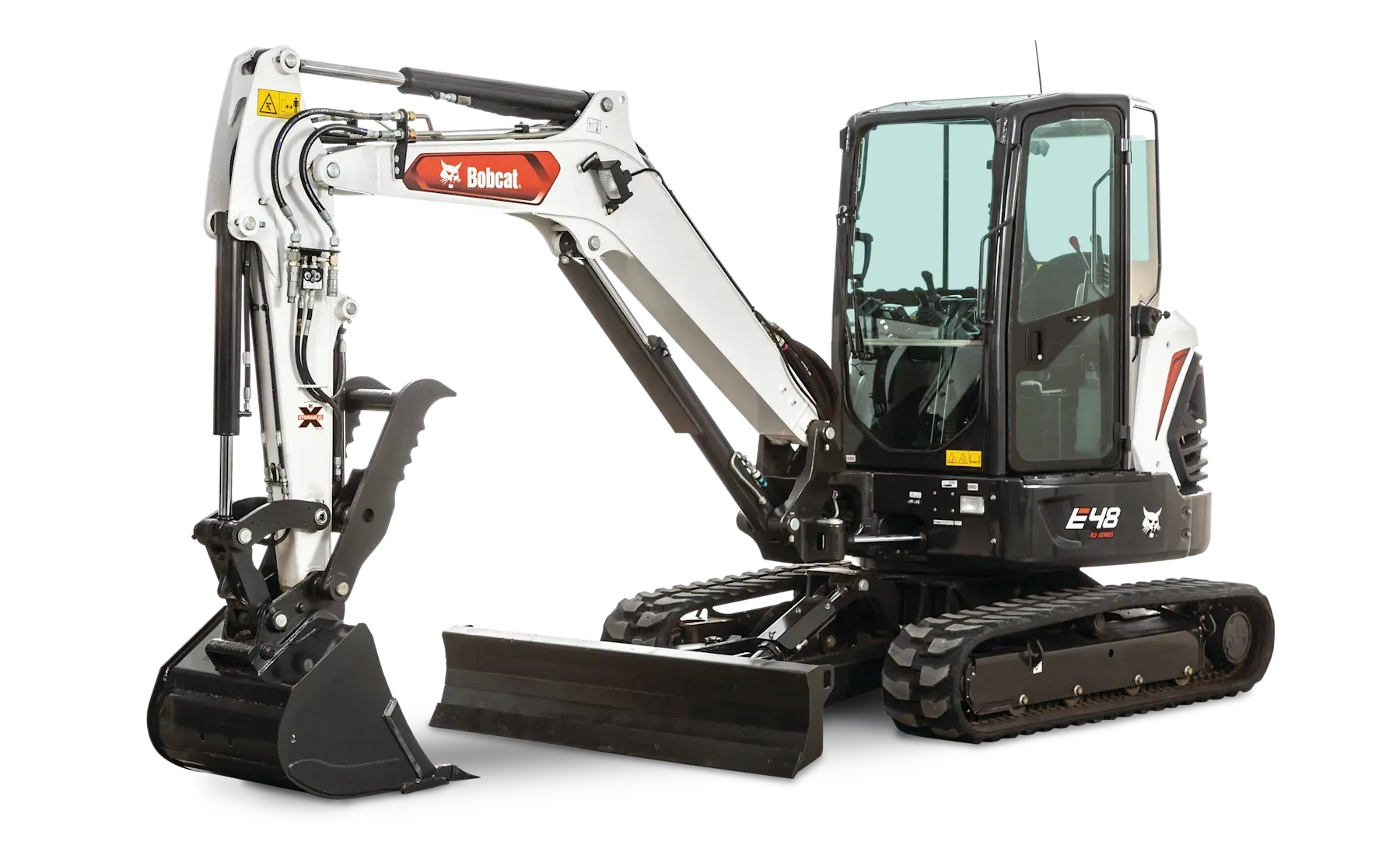

BOBCAT E48 COMPACT EXCAVATOR
Unleash your full potential with the E48 compact excavator. With an unbeatable operator experience, precise controllability and ample power, you’ll embrace new challenges, knowing you’re equipped to handle whatever comes your way.
High-performance hydraulics
Multiple arm configurations
Low-effort joysticks
Premium comfort features
Operating Weight: 9830 lbs
Bucket Digging Force: 9601 lbf
Maximum Reach at Ground Level: 17.3 ft
Width: 72.8 in
Horsepower: 42.6 hp
Maximum Governed RPM: 2200 rpm
Turbocharged Engine: Standard
Operating Weight: 9830 lbs
Weight Class: 4 t
Travel Speed – Low: 1.6 mph
Arm Digging Force: 5820 lbf
Travel Speed – High: 3.3 mph
Bucket Digging Force: 9601 lbf
Rated Lift Capacity: 4921 lbs
Lift Radius: 118 in
Boom Swing – Left: 50 deg
Boom Swing – Right: 50 deg
Maximum Dig Depth: 10.4 ft
Max Dump Height: 150.6 in
Maximum Reach at Ground Level: 17.3 ft
Fuel Tank: 19 gal
Auxiliary Pressure: 3045 psi
Auxiliary Std Flow: 20 gpm
Length: 200.5 in
Overall Length in Travel Position: 200.5 in
Width: 72.8 in
Height with Operator Cab: 99.1 in
