Designed with vertical lift loader arms, its 1,000-lb. rated operating capacity delivers category-crushing performance that’s an industry game-changer. The Dingo TX 1000 also offers increased reach at full height for maximum jobsite productivity. And speaking of productivity, an 81" (206 cm) hinge pin height allows the arms to clear the side of a 30-yard dumpster or one-ton truck. This lightweight, maneuverable machine packs unmatched strength and reach in a compact package for the ultimate working advantage.
Features:
- Class-leading rated operating capacity with 1,000 rated operating capacity
- Maximum height and reach easily clears the side of a 30-yard dumpster
- Compact footprint fits through standard 36" gates
Air Filter | Two-stage, heavy-duty, remote |
Cooling System | Liquid Cooled |
Displacement (cu. in.) | 77 |
Dump Angle | 40 degrees |
Dump Height (inches) | 61 |
Engine Make | Kubota |
Engine Model | D1305 |
Fuel Tank (gallons) | 11.5 |
Fuel Type | Diesel |
Ground Clearance (inches) | 6 |
Ground Pressure | 3.6 psi |
Ground Speed Forward (mph) | 4.7 |
Ground Speed Reverse (mph) | 4.7 |
Hinge Pin Height (inches) | 81 |
Hydraulic Flow Auxilary | 15.2 gpm |
Hydraulic Flow Traction | 13.3 gpm (each pump) |
Hydraulic Pressure | 3000 PSI |
Loader Arms | Vertical Lift |
Manufacturer's Gross HP Rating (HP) | 24.9 |
Max Operating Height (inches) | 105 |
Oil Capacity (quarts) | 6 |
Overall Height (inches) | 53.2 |
Overall Length w/bucket (inches) | 100.7 |
Overall Height (inches) | 53.2 |
Overall Length w/o bucket (inches) | 81.7 |
Overall Width (inches) | 41 |
Reach – Fully Raised (inches) | 24.5 |
Weight (lbs) | 2790 |
Wheelbase (inches) | 41 |

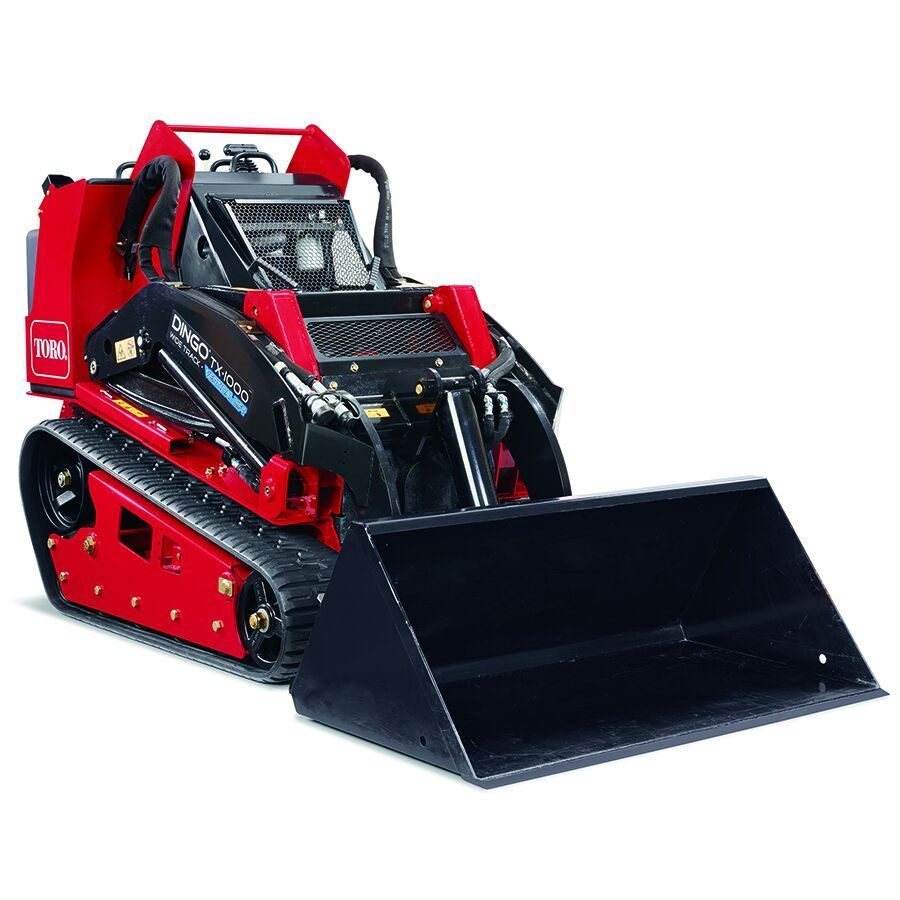

DINGO® TX 1000 WIDE TRACK
